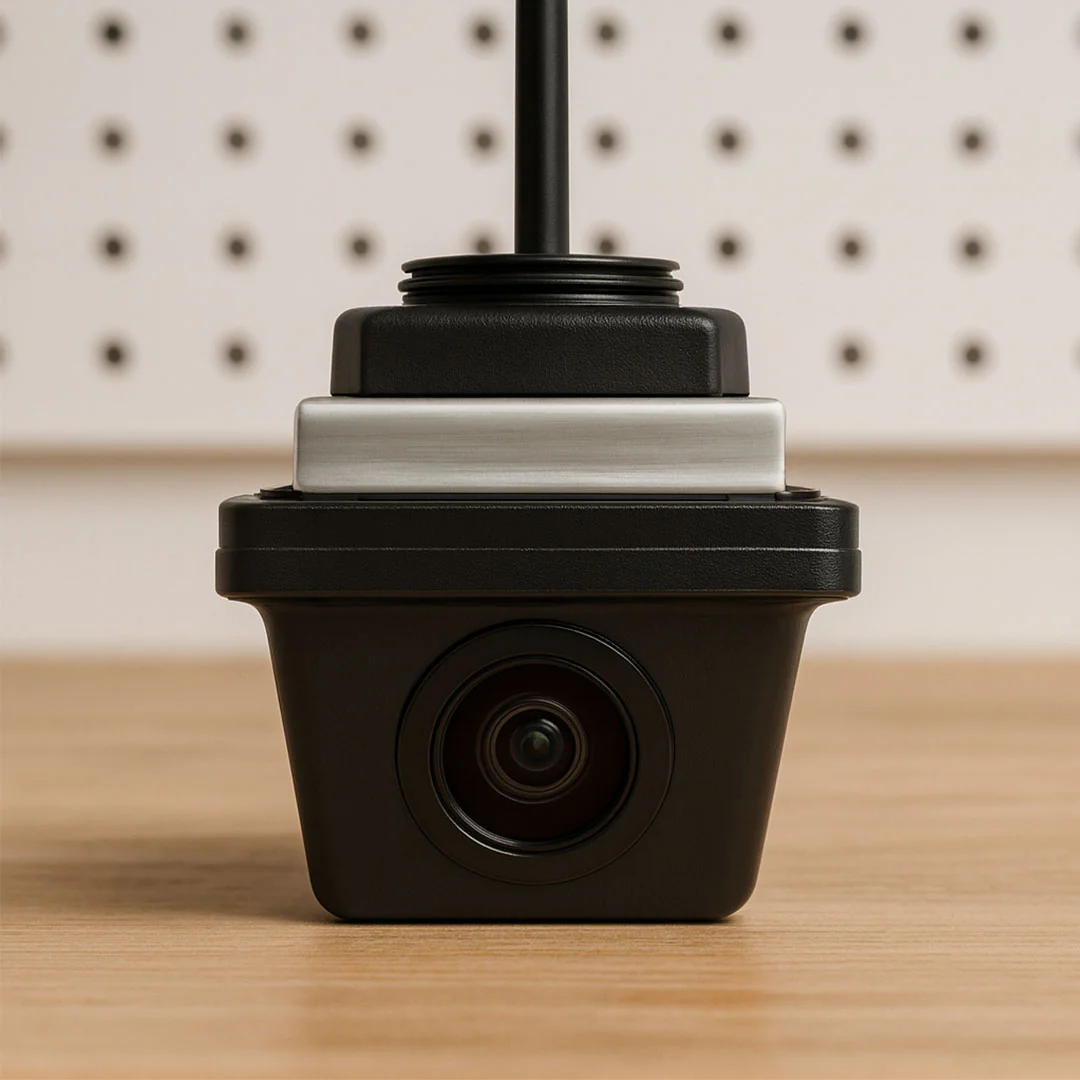

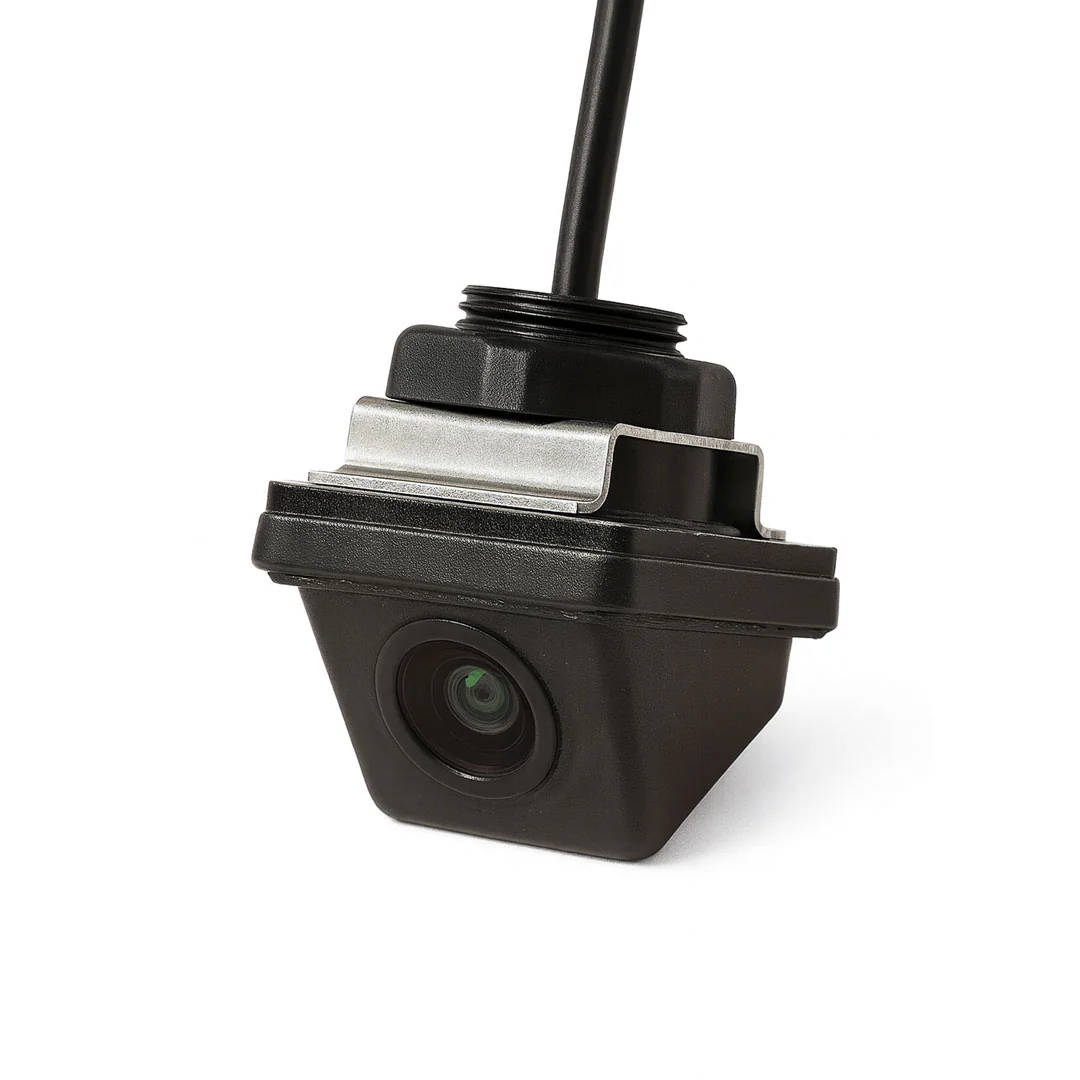

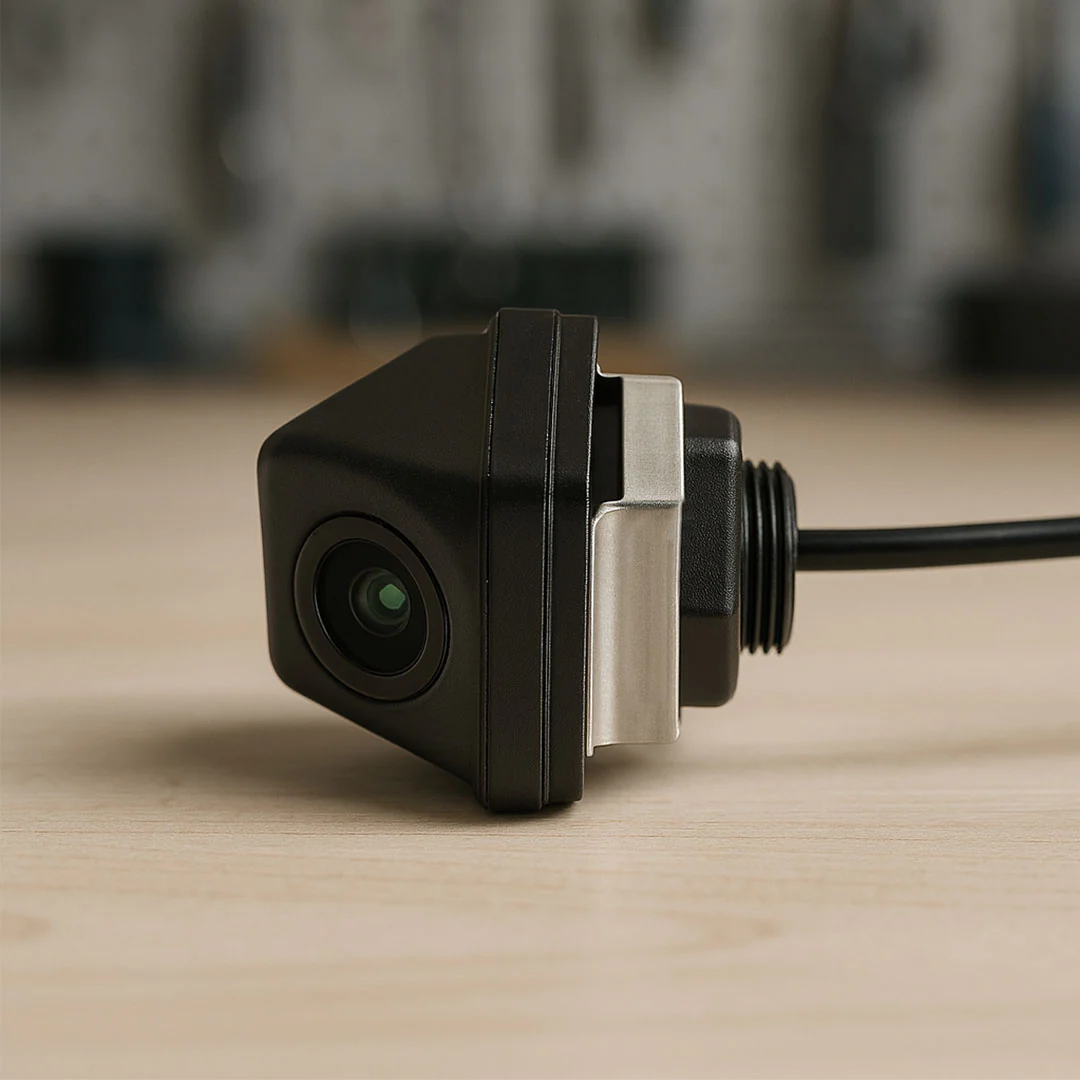

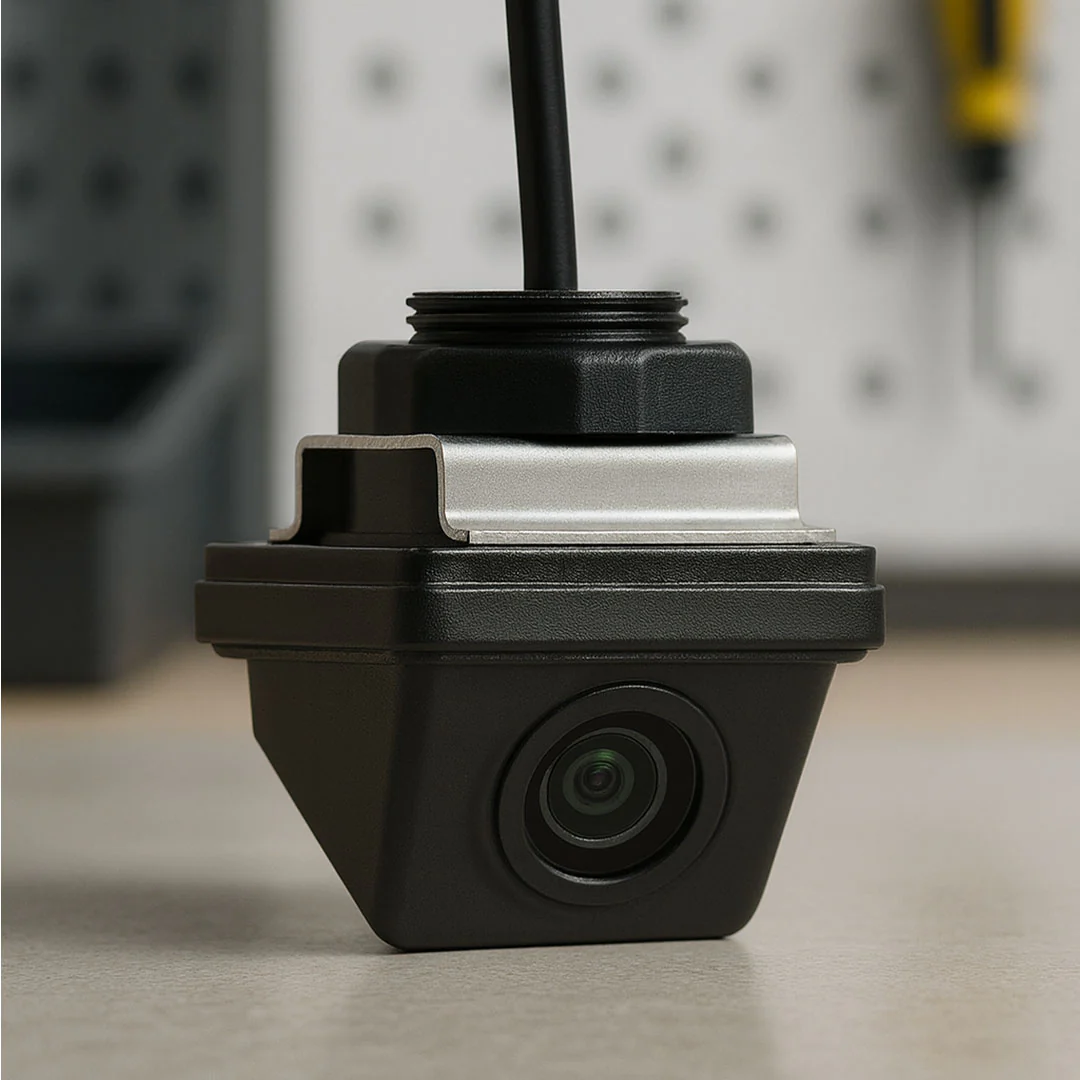

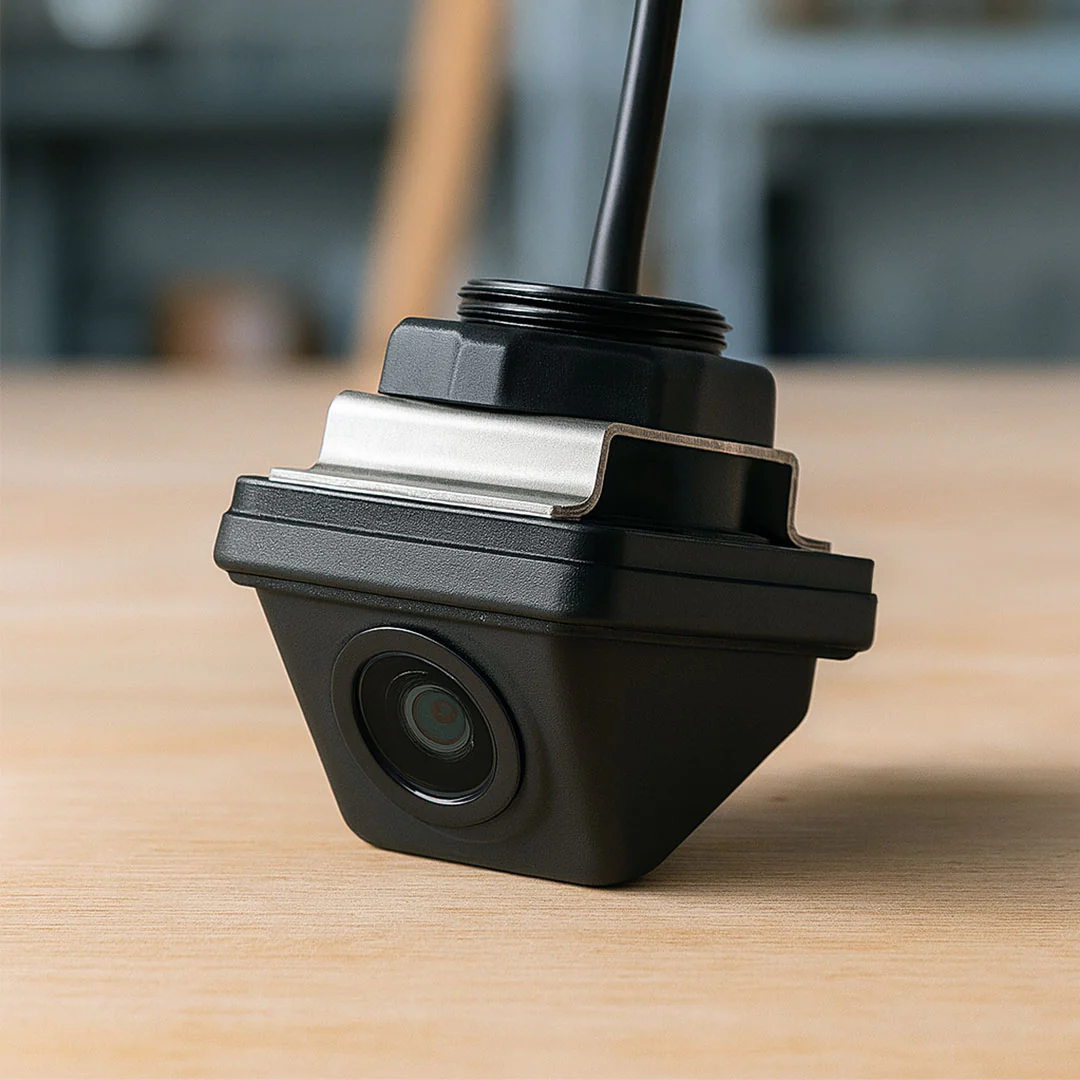

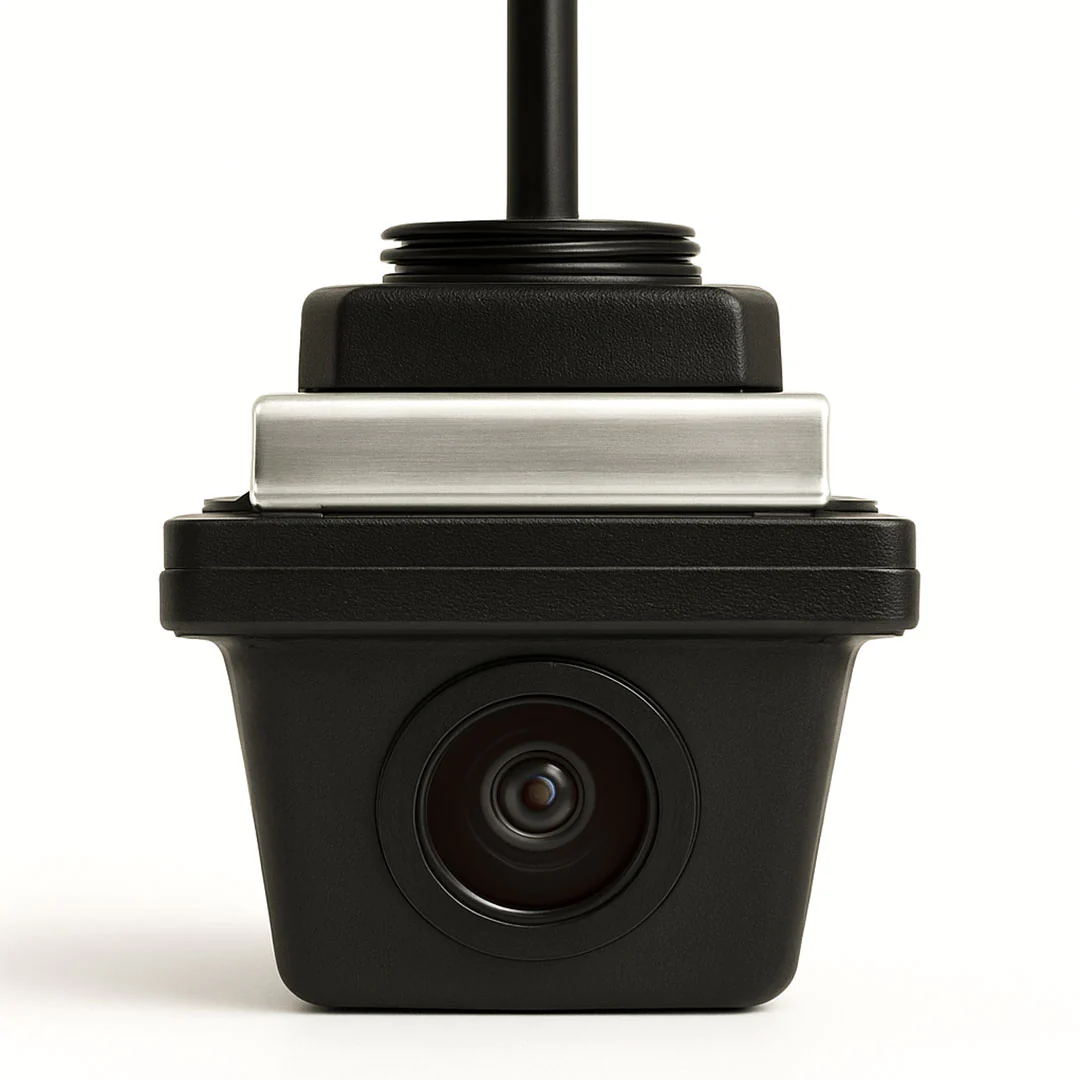

DNA RCO170 | CMOS Reverse Camera with OEM Stalk Mount – PAL/NTSC, IP68 Waterproof, 170° View Angle

DNA RCO170 | CMOS Reverse Camera – OEM Stalk Mount, PAL/NTSC, 170° Wide-Angle

The DNA RCO170 is a compact CMOS reverse camera built for clean OEM-style installations, delivering exceptional rear visibility with selectable video formats and advanced weatherproof protection. Ideal for drivers looking to integrate a discreet, high-quality reversing solution into their vehicle's design.

Key Features & Benefits:

• OEM Design: Integrated stalk mount with self-locking plate and nut for seamless vehicle fitment
• PAL/NTSC Selectable: Easily switch formats by cutting a control wire (default: PAL)
• Mirror Image & Parking Guide Lines: Built-in assist functions for safe reversing
• 170° Viewing Angle: Wide field of view for full rear coverage
• Waterproof Construction: IP68 rated for full weather resistance
• Professional Look: Neat concealed wiring for a factory-like finish

Product Specifications:

• Sensor Type: CMOS
• Video Format: PAL or NTSC (Selectable)
• Resolution: 976(H) x 592(V)
• Horizontal Resolution: 700 TV Lines
• View Angle: 170°
• Electronic Shutter: 1s–1/10000s
• Min. Illumination: 0.01 Lux
• SNR: ≥ 45.0 dB
• Power Supply: DC 6V–15V ±0.5V
• Consumption: 100mA ±10%
• Waterproof Rating: IP68
• Video Output: 1.0V±0.5Vp-p 75Ω

Dimensions:

• Camera Body: 29mm (W) x 22mm (H) x 32mm (D)
• Mounting Hole Size: 22mm Diameter

For professional installers and vehicle owners who want a clean and secure reverse camera integration, the DNA RCO170 delivers OEM precision with all the essential features for safe and reliable backing.
